Products to Assemble

First module tube diameter 4.1mm cut at 230mm +/-2.5%, Y injection point, luer lock connector, CAP protector for luer lock connection. Second module tube diameter 4.1mm cut at 1300mm+/- 2.5%, roller pre assembled with wheel, slide clamp


Process used for infusion set assembly

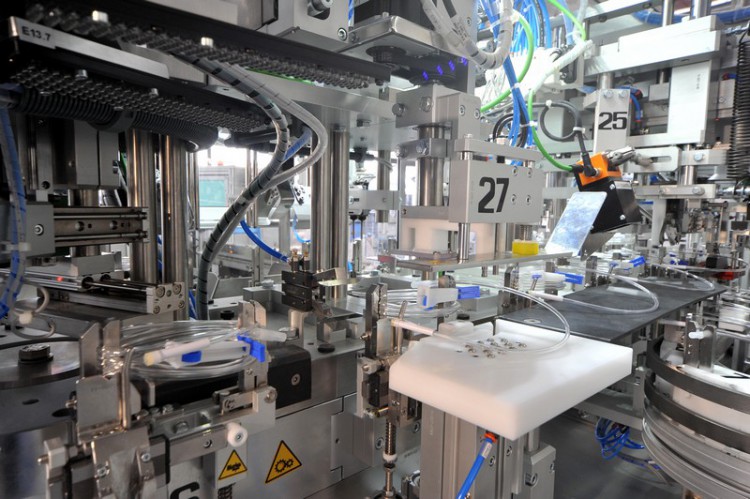

Machine functioning based on the use of 2 linear transfer, first module of 16 working stations, second module 16 working stations, with mechanical guides based on pneumatic technology, with transfer on pallet of the first sub-assembly


Significant techniques for infusion set assembly

Twin double uncoiling system, holding 4 tubing reels. Solvent dispensing system suitable for cyclohexane or THF, including solvent level control. Fixing with cohesive or coated tape in oval bundle. Possibility of automatically change tubing and paper at the end of reel



Component presence, visual inspection of component insertion and positioning


Productivity of automatic machine for drip chamber, infusion set and injection point assembly

Starting from 1800 pcs/h
